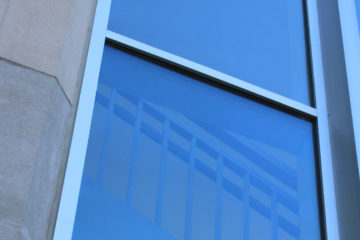

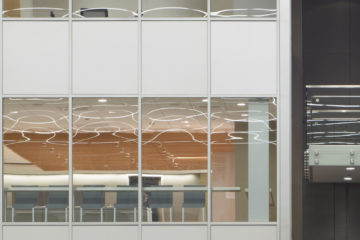

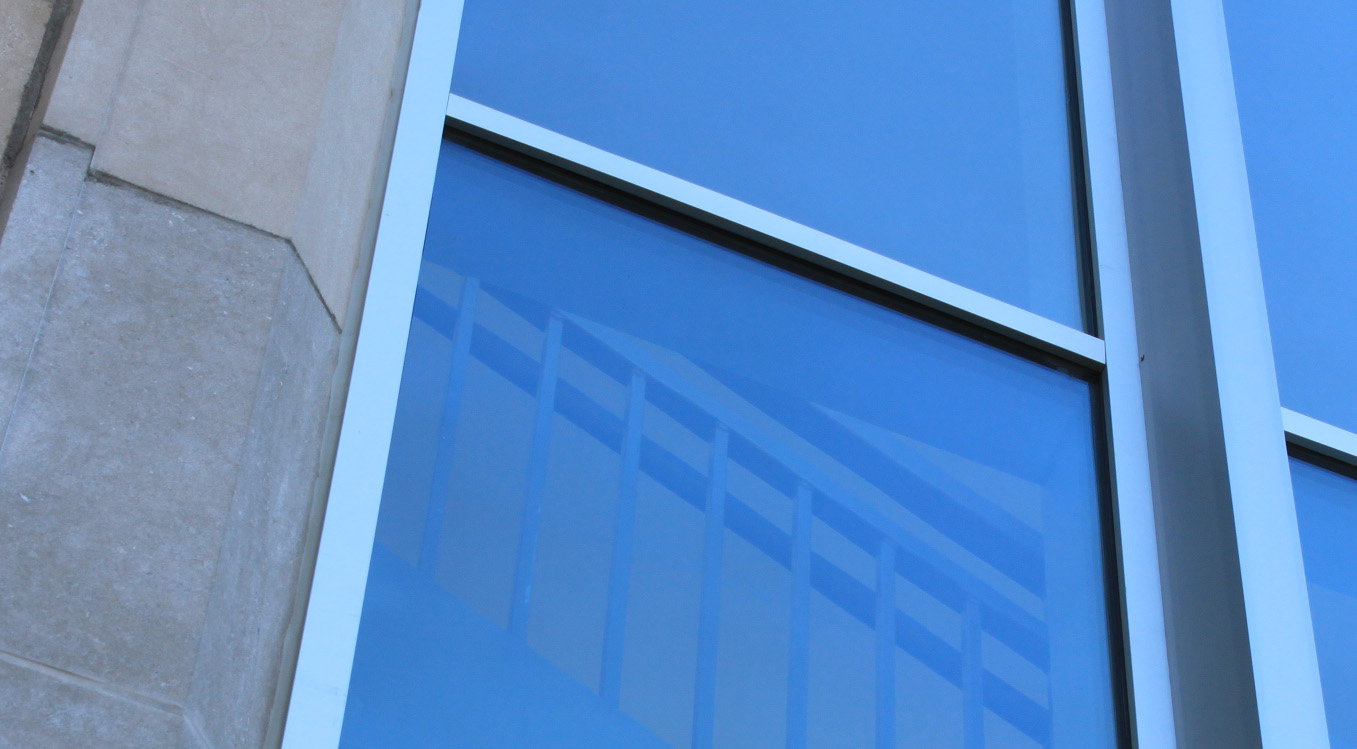

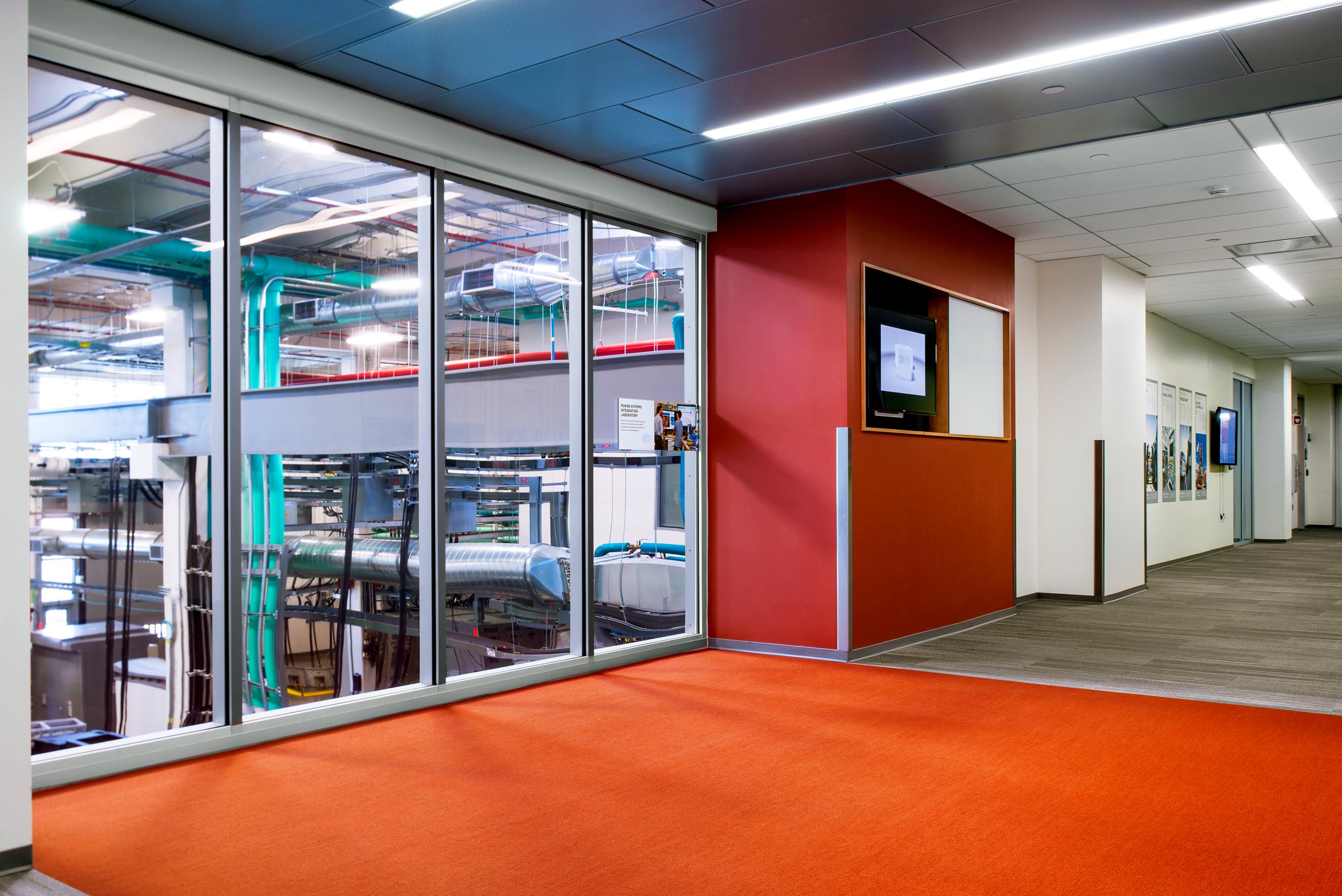

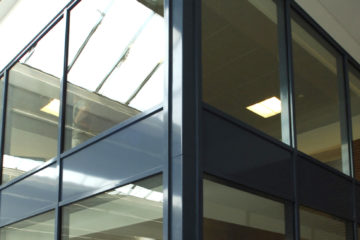

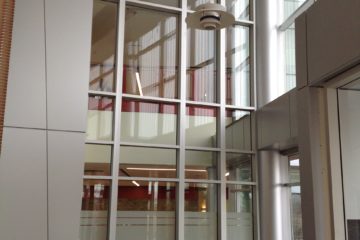

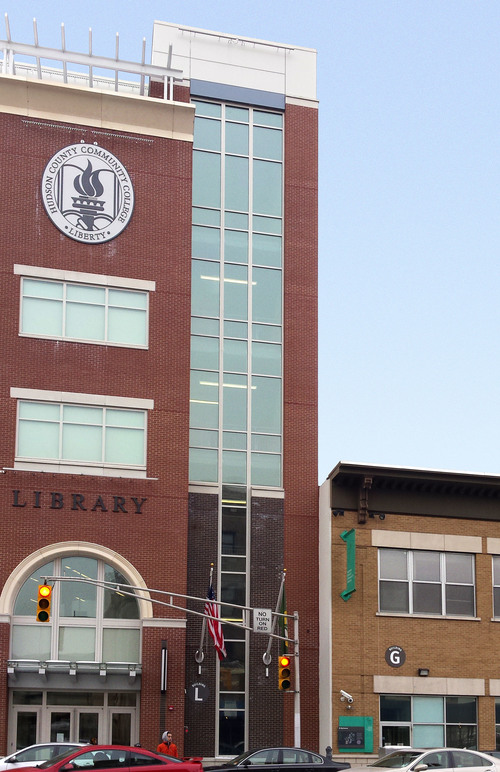

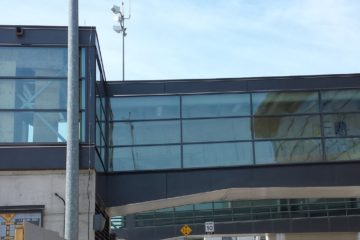

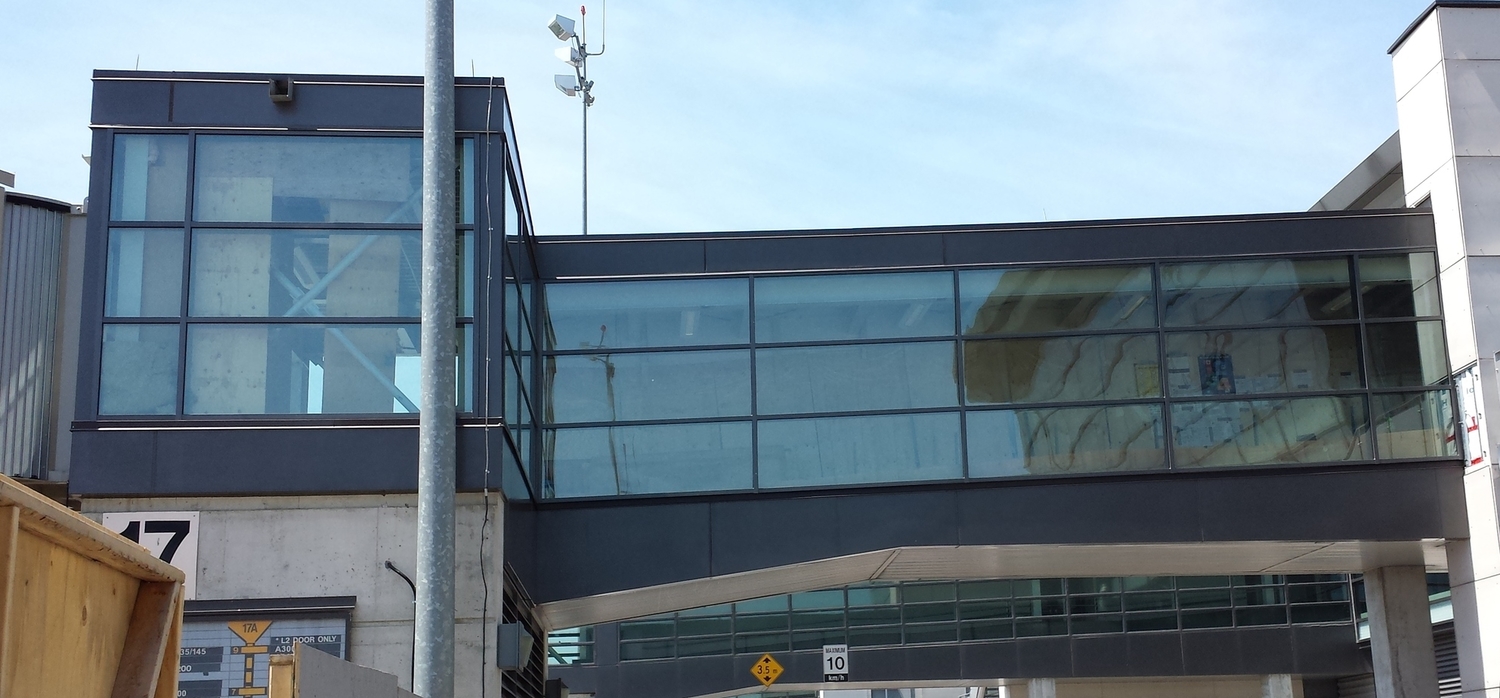

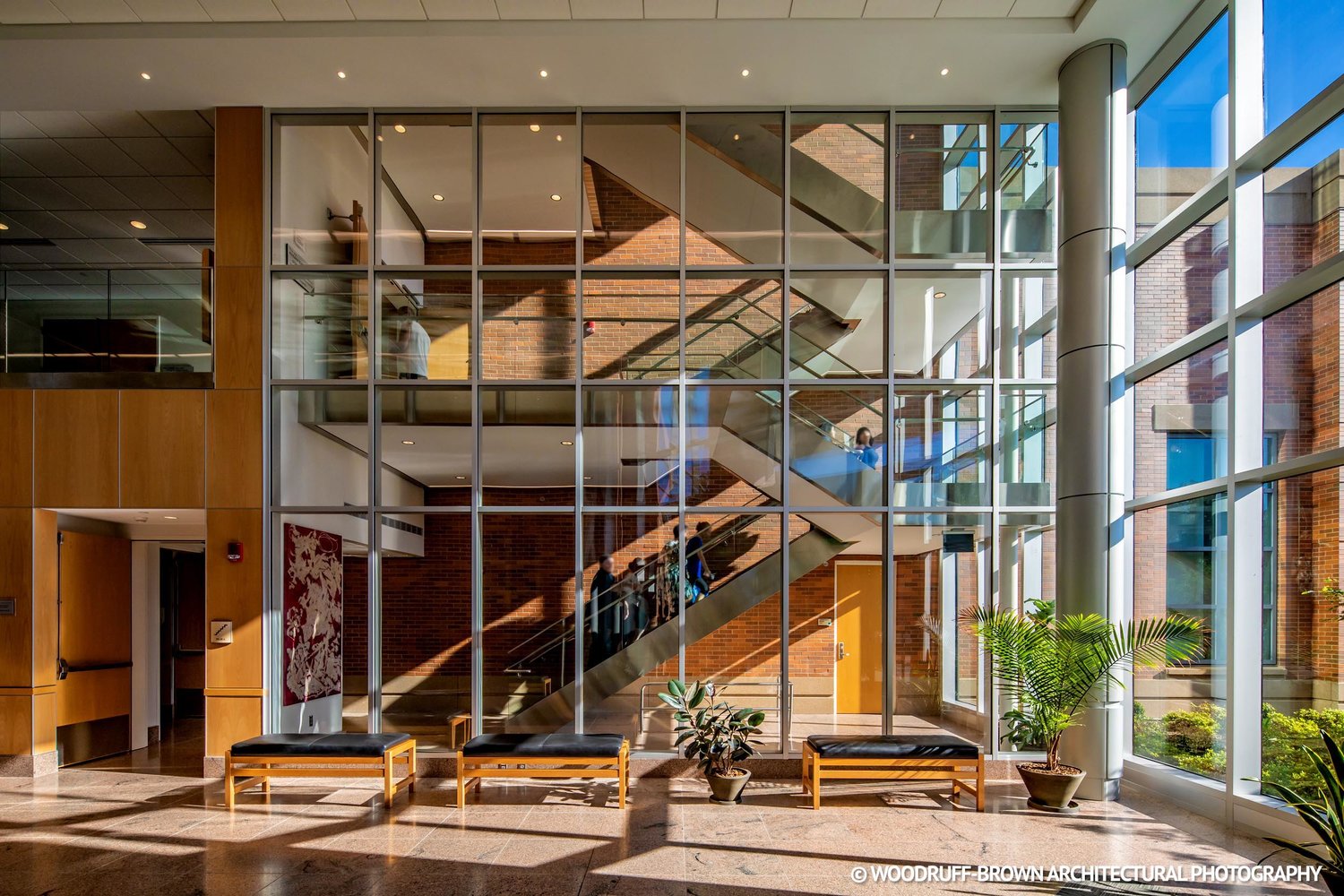

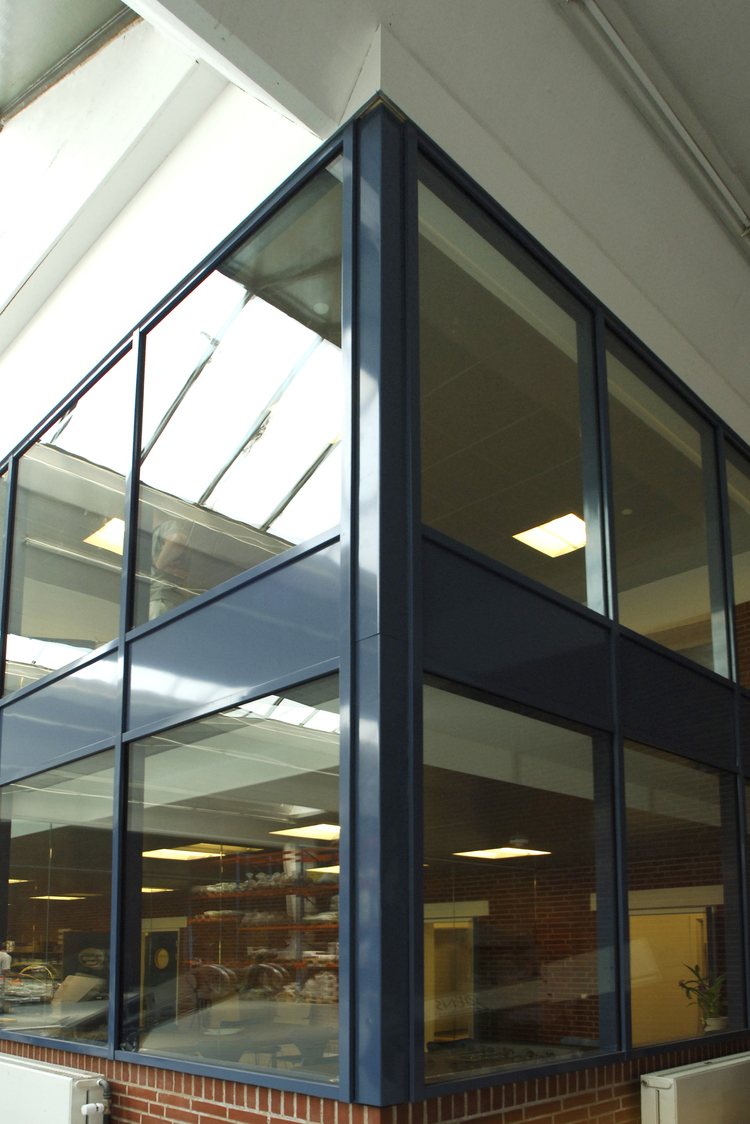

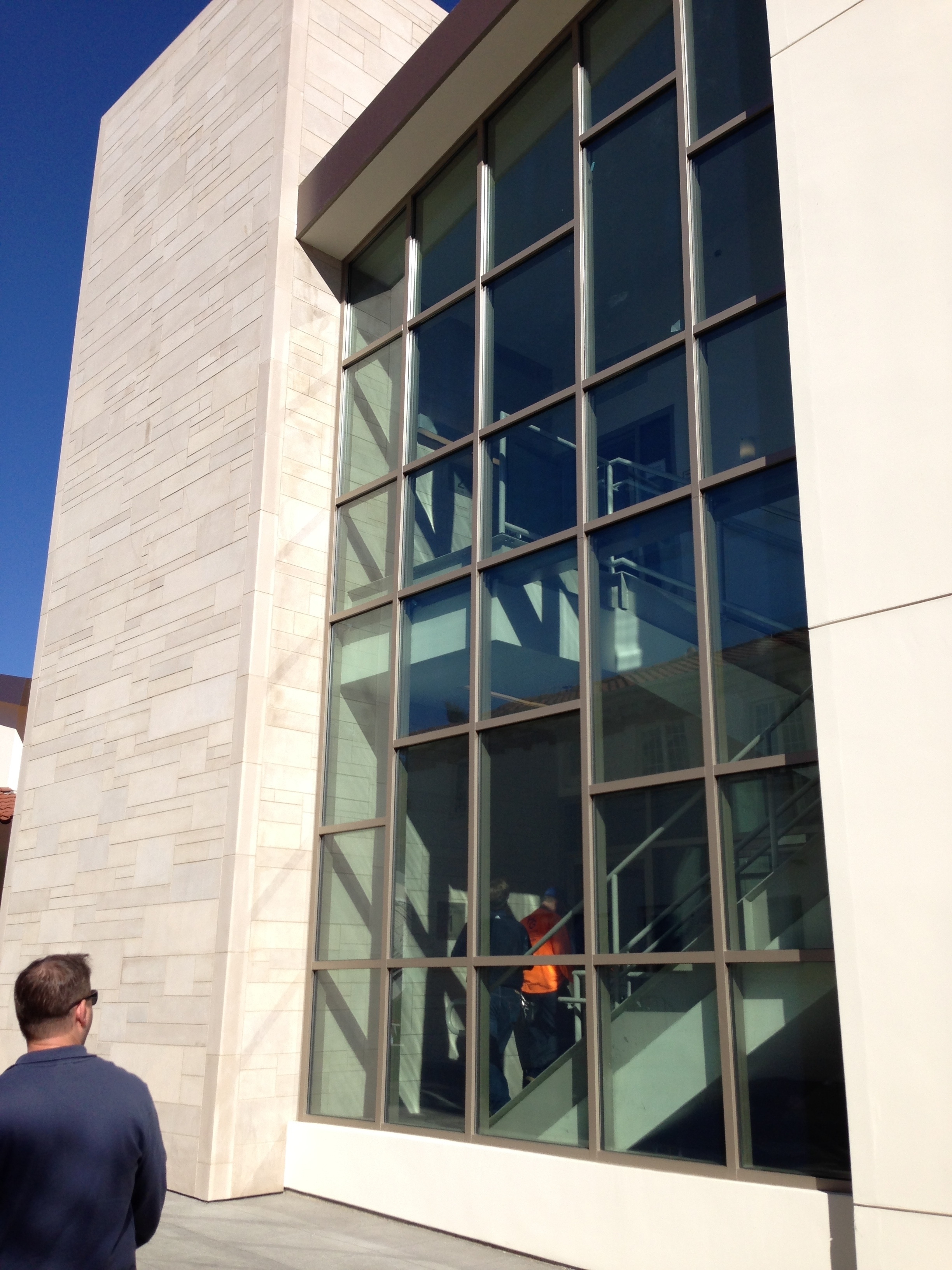

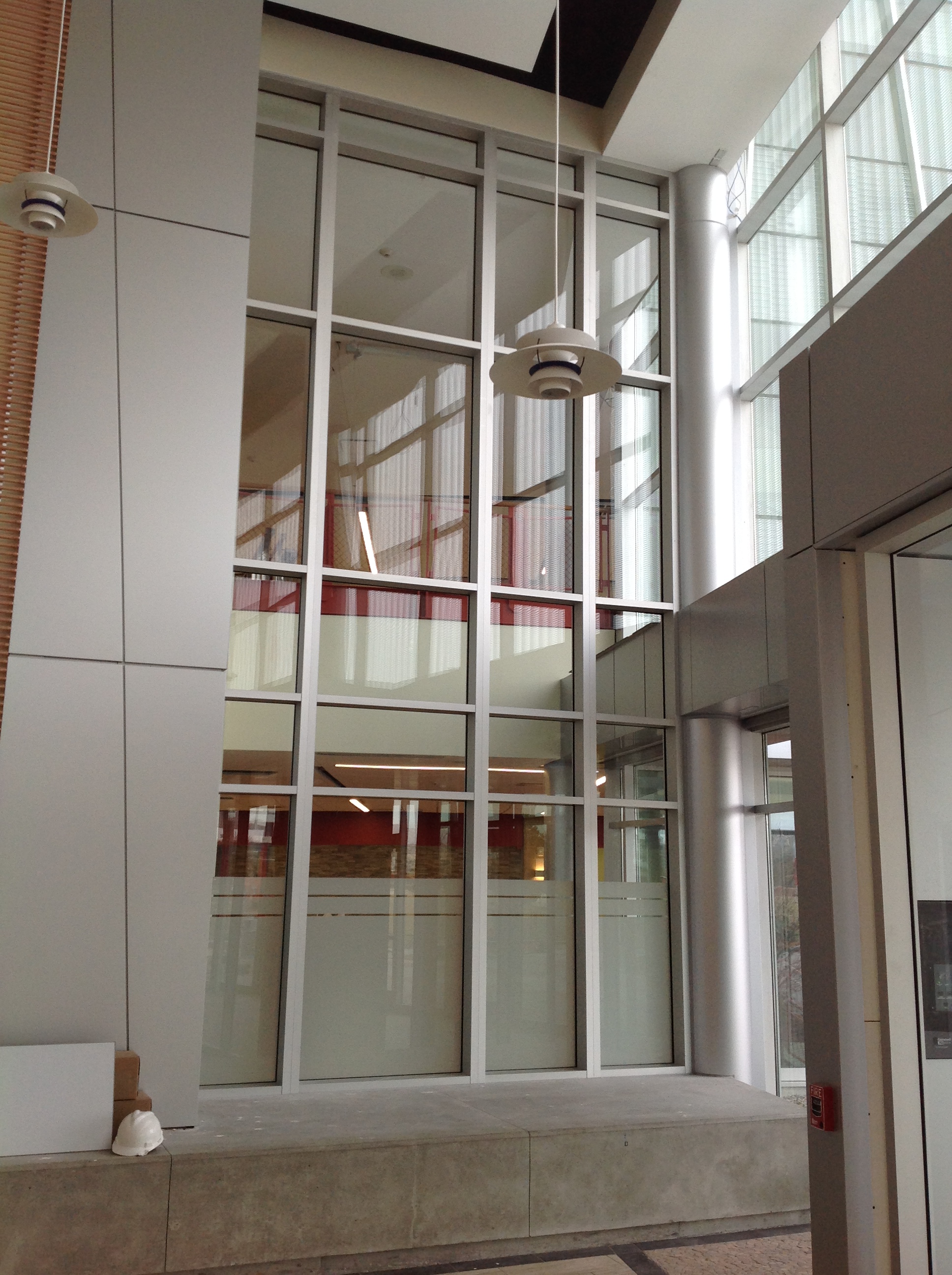

Constructed from narrow aluminum extrusions filled with a proprietary fire blocking internal member, Aluflam’s curtain wall frames have up to 120 minute rating for interior and exterior installations.

Features and benefits include:

  • Large, wire-free glass areas
  • The clean, sharp lines of narrow aluminum framing
  • Wide range of finish options
  • Available in single or divided lite designs
  • Simple to install

AW50 Series

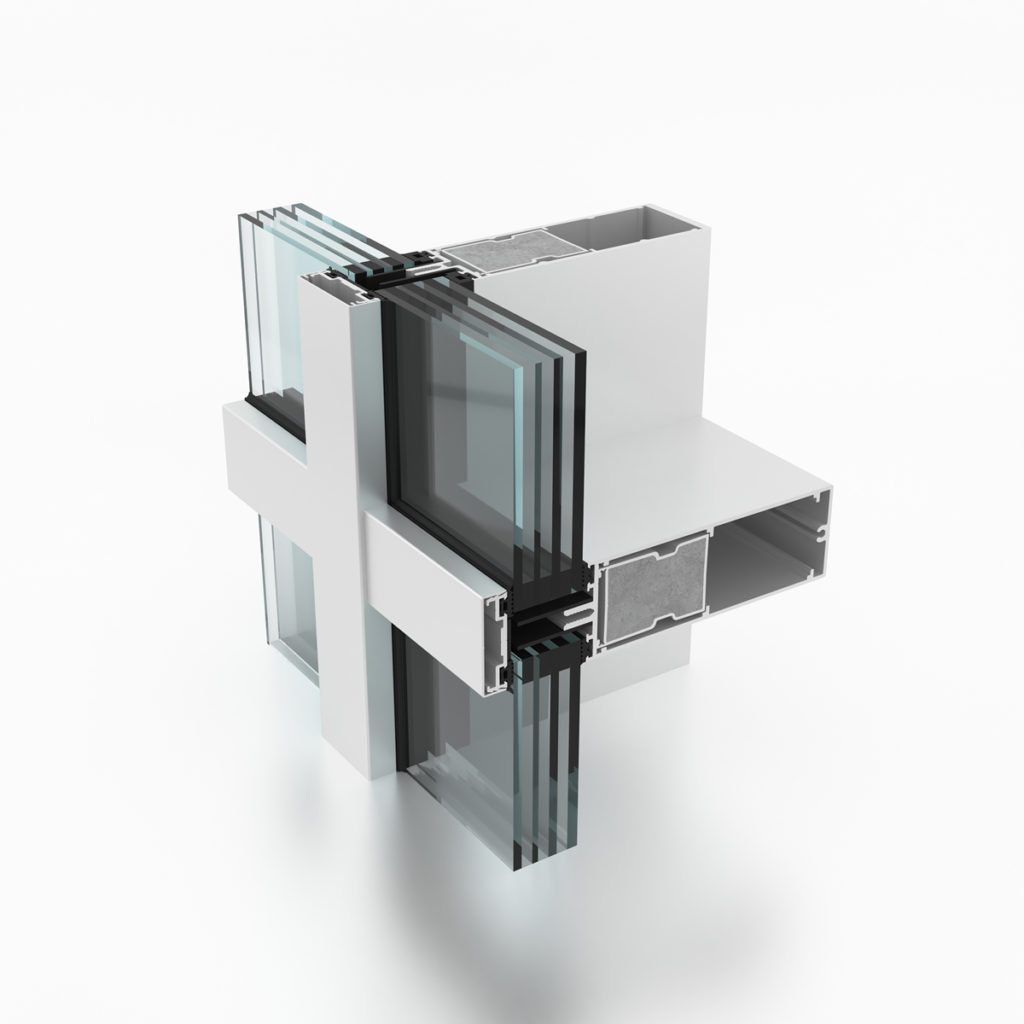

AW50 Deep Series

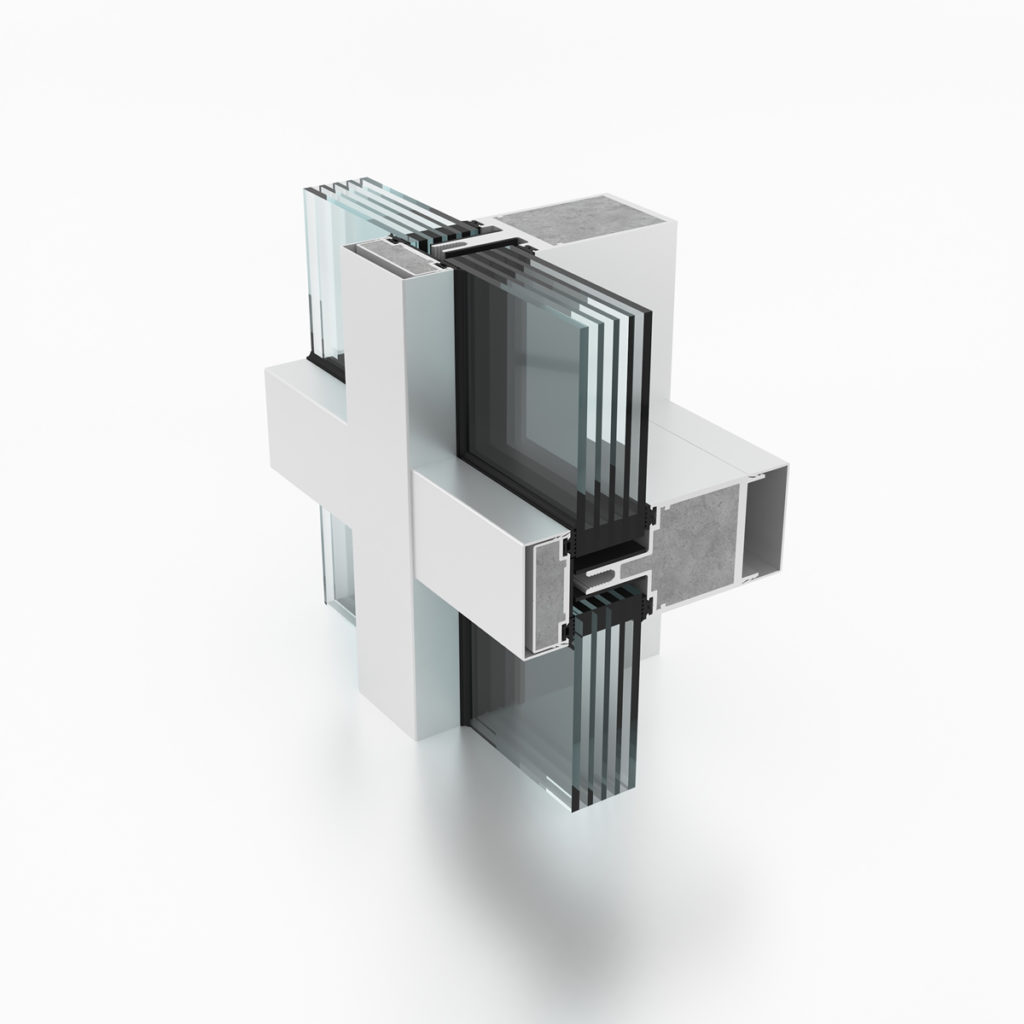

AW60 Series

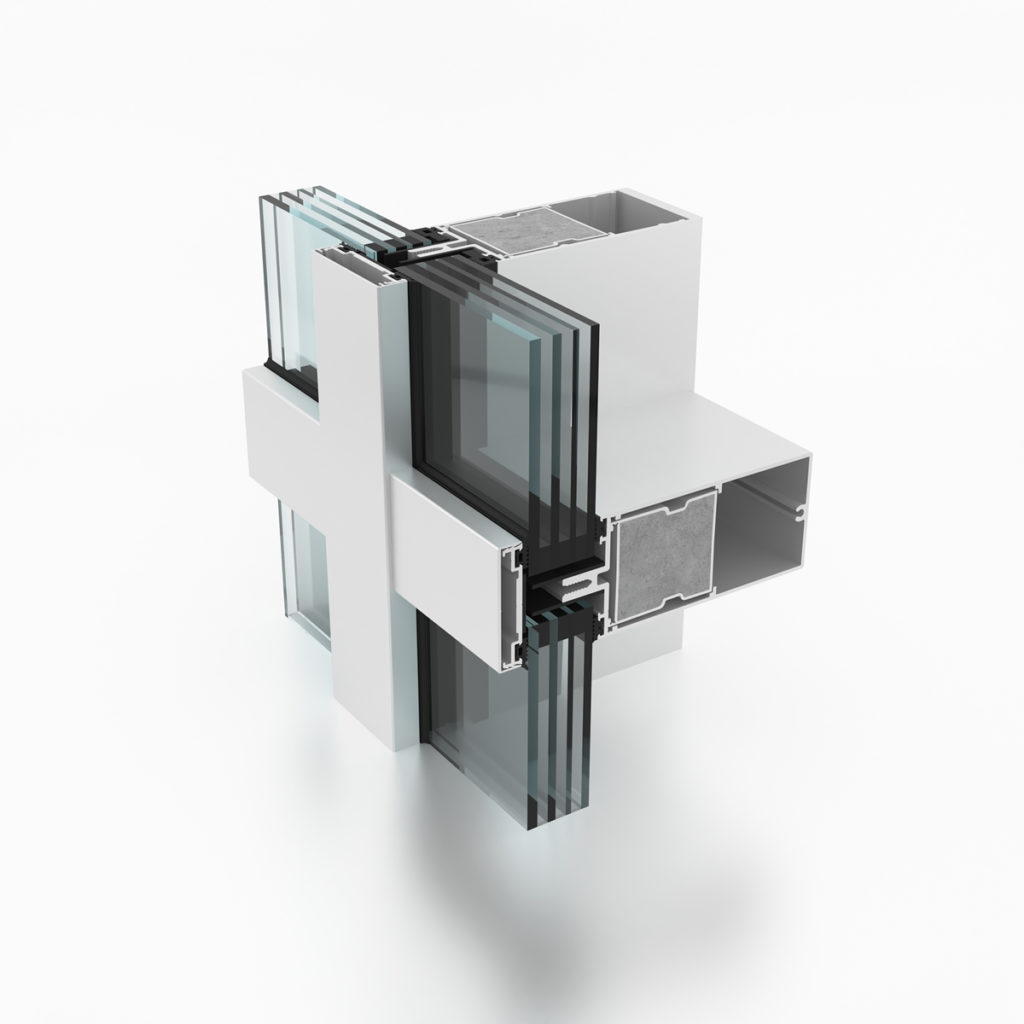

AW64 Series

Product Series AW50 AW50D AW60 AW64
Fire rating 60 min Resistive 60 min Resistive 120 min Resistive 60 min Resistive
Sightline 2 in 2 in 2-3/8 in 2 -1/2 in
System Depth 5-1/8 - 5-3/4 in 7-5/8 - 8-1/8 in 6-1/4 - 7 in 6-7/8 - 7-1/2 in
Frame Weight 4.2 lbs/ft 4.9 lbs/ft 6.7 lbs/ft 6.1 lbs/ft
Wind Load Resistance (Ixx value) - click for span chart 2.578 9.149 4.649 10.554
Reinforcing options n/a n/a
Test standard UL263 / ASTM E119 / NFPA 251 UL263 / ASTM E119 / NFPA 251 UL263 / ASTM E119 / NFPA 251 UL263 / ASTM E119 / NFPA 251
True Aluminum Framing
Glass Plane Front Front Front Front
Glazing Installation Outside Outside Outside Outside
Finishes Available Anodize, Powder Coat, Polymer Finish Anodize, Powder Coat, Polymer Finish Anodize, Powder Coat, Polymer Finish Anodize, Powder Coat, Polymer Finish
Butt Joint Glazing Option
Simulated SSG Option -

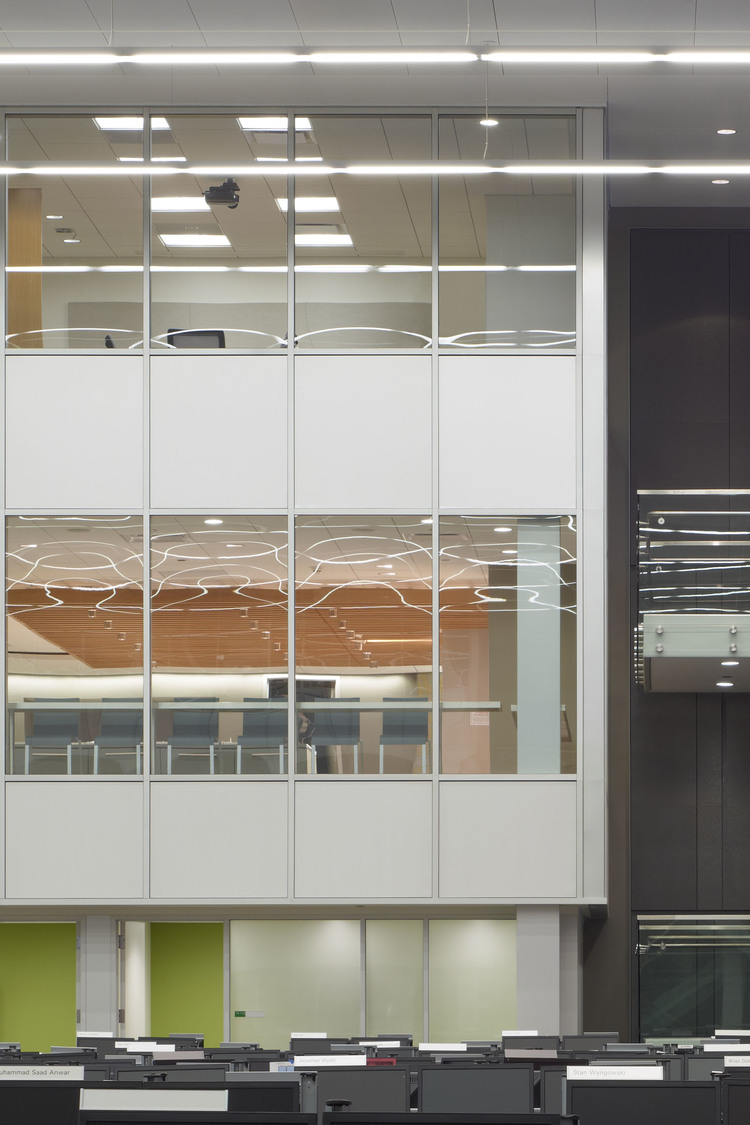

A popular option for glazing Aluflam curtain wall frames is the Contraflam Structure butt joined glazing, where multiple panels of fire-rated glass can be joined together by means of a unique fire-rated silicone joint. This mullion-less design is available for interior wall systems.

AW50 Curtain Wall Series

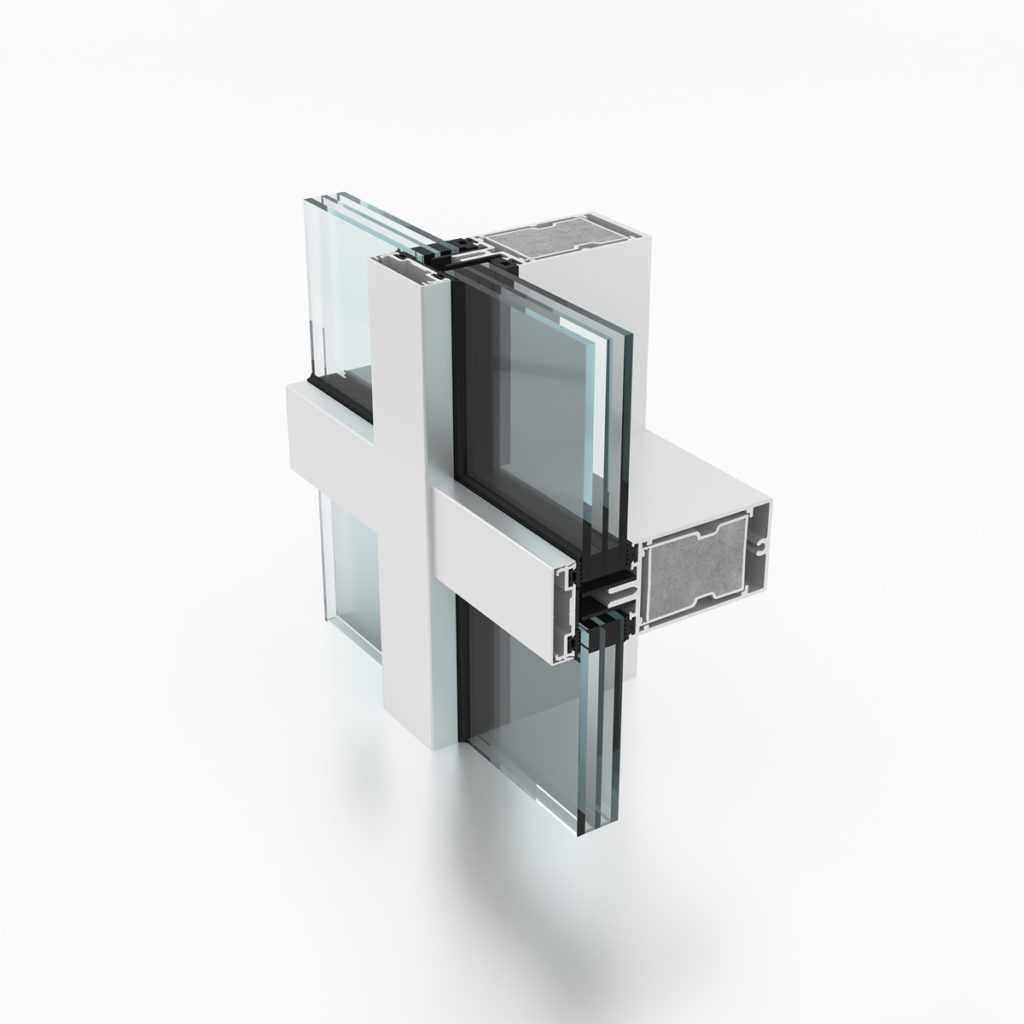

AW50 Curtain Wall

Aluflam’s curtain wall frames are constructed from thermally broken narrow aluminum extrusions filled with a proprietary fire blocking material.

Frame Section: 2 x 5-3/16 in

Frame weight: 4.2 lbs/ft

60 Minute Glazing | 60 Minute Glazing IGU

60 Minute Butt Joint Glazing

Contraflam 60 is a clear multi-chamber fire-resistive glass for interior applications – UL listed for up to 60 minutes fire rating. It is made of tempered safety glass, sealed to be completely moisture-resistant, with internal chambers filled with an environmentally friendly, transparent and UV-stable alkaline silicate based chemical mixture. In the event of fire, these intumescent interlayers expand as opaque foam providing necessary heat insulating properties. Contraflam 60 meets CPSC 16CFR 1201-CAT II impact safety rating. Contraflam 60 can be combined into an IGU with a full range of insulating glass material options for exterior applications.

Contraflam Structure 60 is a clear multi-chamber fire-resistive glass for interior butt-joint applications – UL listed for up to 60 minutes fire rating.  Several glass units are installed side-by-side with silicone butt joints for a continuous glass wall appearance.  Each unit is made of tempered safety glass, sealed to be completely moisture-resistant, with internal chambers filled with an environmentally friendly, transparent and UV-stable alkaline silicate based chemical mixture.  In the event of fire, these intumescent interlayers expand as opaque foam providing necessary heat insulating properties.  Contraflam Structure 60 meets CPSC 16CFR 1201-CAT II impact safety rating.


References:

  • architectural details- 60 min DWG PDF
  • 3-part specification – 60 min
  • installation manual – 60 min
  • UL approvals – 60 min
  • data sheet – 60 min
  • mullion span chart – AW50
(click links above to download)
Doors: Need Fire-Rated Doors? Click Here
Product Type 60 min Window / Wall 60 min Window / Wall 60 min Butt-Joined Wall
Designation AW50W60 AW50W60 AW50WB60
Install in interior / exterior wall Interior Exterior Interior
Sightline 2 in 2 in 2 in
System Depth 5-1/8 in 5-3/4 in 5-1/2 in
Max. exposed glass area (per lite) 4,996 in2 4,996 in2 7,574 in2
Max. exposed glass width (per lite) 94-1/2 in 94-1/2 in 94-1/2 in
Max. exposed glass width (per lite) 94-1/2 in 94-1/2 in 138-1/2 in
Glazing Contraflam 60 Contraflam 60 IGU Contraflam Structure 60
Glass Marking W-60 W-60 W-60
Butt Joint Glazing Option - -
True Aluminum Framing
Glass Thickness 1 in 1-9/16 in 1-1/4 in
Glass Weight 10.3 lbs/ft2 14.9 lbs/ft2 14 lbs/ft2

AW50D Curtain Wall Series

AW50D Curtain Wall

Aluflam’s curtain wall frames are constructed from thermally broken narrow aluminum extrusions filled with a proprietary fire blocking material.

Frame Section: 2 x 7-5/8 in

Frame weight: 4.9 lbs/ft

60 Minute Glazing | 60 Minute Glazing IGU

60 Minute Butt Joint Glazing

Contraflam 60 is a clear multi-chamber fire-resistive glass for interior applications – UL listed for up to 60 minutes fire rating. It is made of tempered safety glass, sealed to be completely moisture-resistant, with internal chambers filled with an environmentally friendly, transparent
and UV-stable alkaline silicate based chemical mixture. In the event of fire, these intumescent interlayers expand as opaque foam providing necessary heat insulating properties. Contraflam 60 meets CPSC 16CFR 1201-CAT II impact safety rating. Contraflam 60 can be combined into an IGU with a full range of insulating glass material options for exterior applications.

Contraflam Structure 60 is a clear multi-chamber fire-resistive glass for interior butt-joint applications – UL listed for up to 60 minutes fire rating.  Several glass units are installed side-by-side with silicone butt joints for a continuous glass wall appearance.  Each unit is made of tempered safety glass, sealed to be completely moisture-resistant, with internal chambers filled with an environmentally friendly, transparent and UV-stable alkaline silicate based chemical mixture.  In the event of fire, these intumescent interlayers expand as opaque foam providing necessary heat insulating properties.  Contraflam Structure 60 meets CPSC 16CFR 1201-CAT II impact safety rating.


References:

  • architectural details- 60 min DWG PDF
  • 3-part specification – 60 min
  • installation manual – 60 min
  • UL approvals – 60 min
  • data sheet – 60 min
  • mullion span chart – AW50D
(click links above to download)
Doors: Need Fire-Rated Doors? Click Here
Product Type 60 min Window / Wall 60 min Window / Wall 60 min Butt-Joined Wall
Designation AW50DW60 AW50DW60 AW50DWB60
Install in interior / exterior wall Interior Exterior Interior
Sightline 2 in 2 in 2 in
System Depth 7-5/8 in 8-1/8 in 7-7/8 in
Max. exposed glass area (per lite) 4,996 in2 4,996 in2 7,574 in2
Max. exposed glass width (per lite) 94-1/2 in 94-1/2 in 94-1/2 in
Max. exposed glass width (per lite) 94-1/2 in 94-1/2 in 138-1/2 in
Glazing Contraflam 60 Contraflam 60 IGU Contraflam Structure 60
Glass Marking W-60 W-60 W-60
Butt Joint Glazing Option - -
Glass Thickness 1 in 1-9/16 in 1-1/4 in
Glass Weight 10.3 lbs/ft2 14.9 lbs/ft2 14 lbs/ft2

AW60 Curtain Wall Series

AW60 Curtain Wall

Aluflam’s curtain wall frames are constructed from thermally broken narrow aluminum extrusions filled with a proprietary fire blocking material.

Frame Section: 2-3/8 x 6-1/4 in

Frame weight: 6.7 lbs/ft

120 Minute Glazing | 120 Minute Glazing IGU

120 Minute Butt Joint Glazing

Contraflam 120 is a clear multi-chamber fire-resistive glass for interior applications – UL listed for up to 120 minutes fire rating. It is made of tempered safety glass, sealed to be completely moisture-resistant, with internal chambers filled with an environmentally friendly, transparent and UV-stable alkaline silicate based chemical mixture. In the event of fire, these intumescent interlayers expand as opaque foam providing necessary heat insulating properties. Contraflam 120 meets CPSC 16CFR 1201-CAT II impact safety rating. Contraflam 120 can be combined into an IGU with a full range of insulating glass material options for exterior applications.

Contraflam Structure 120 is a clear multi-chamber fire-resistive glass for interior butt-joint applications – UL listed for up to 120 minutes fire rating.  Several glass units are installed side-by-side with silicone butt joints for a continuous glass wall appearance.  Each unit is made of tempered safety glass, sealed to be completely moisture-resistant, with internal chambers filled with an environmentally friendly, transparent and UV-stable alkaline silicate based chemical mixture.  In the event of fire, these intumescent interlayers expand as opaque foam providing necessary heat insulating properties.  Contraflam Structure 120 meets CPSC 16CFR 1201-CAT II impact safety rating.


References:

(click links above to download)
Doors: Need Fire-Rated Doors? Click Here
Product Type 120 min Window / Wall 120 min Window / Wall 120 min Butt-Joined Wall
Designation AW60W120 AW60W120 AW60WB120
Install in interior / exterior wall Interior Exterior Interior
Sightline 2-3/8 in 2-3/8 in 2-3/8 in
System Depth 6-1/4 in 7 in 6-3/4 in
Max. exposed glass area (per lite) 4,420 in2 4,420 in2 4,536 in2
Max. exposed glass width (per lite) 94-7/16 in 94-7/16 in 94-7/16 in
Max. exposed glass width (per lite) 94-7/16 in 94-7/16 in 126 in
Glazing Contraflam 120 Contraflam 120 IGU Contraflam Structure 120
Glass Marking W-120 W-120 W-120
Butt Joint Glazing Option - -
Glass Thickness 1-9/16 in 2-1/4 in 2-1/16 in
Glass Weight 17.4 lbs/ft2 21.4 lbs/ft2 22.5 lbs/ft2

AW64 Curtain Wall Series

AW64 Curtain Wall

Aluflam’s curtain wall frames are constructed from thermally broken narrow aluminum extrusions filled with a proprietary fire blocking material.

Frame Section:  2-1/2 x 7-1/2 in

Frame weight: 6.1 lbs/ft

60 Minute Glazing | 60 Minute Glazing IGU

60 Minute Butt Joint Glazing

Contraflam 60 is a clear multi-chamber fire-resistive glass for interior applications – UL listed for up to 60 minutes fire rating. It is made of tempered safety glass, sealed to be completely moisture-resistant, with internal chambers filled with an environmentally friendly, transparent and UV-stable alkaline silicate based chemical mixture. In the event of fire, these intumescent interlayers expand as opaque foam providing necessary heat insulating properties. Contraflam 60 meets CPSC 16CFR 1201-CAT II impact safety rating. Contraflam 60 can be combined into an IGU with a full range of insulating glass material options for exterior applications.

Contraflam Structure 60 is a clear multi-chamber fire-resistive glass for interior butt-joint applications – UL listed for up to 60 minutes fire rating.  Several glass units are installed side-by-side with silicone butt joints for a continuous glass wall appearance.  Each unit is made of tempered safety glass, sealed to be completely moisture-resistant, with internal chambers filled with an environmentally friendly, transparent and UV-stable alkaline silicate based chemical mixture.  In the event of fire, these intumescent interlayers expand as opaque foam providing necessary heat insulating properties.  Contraflam Structure 60 meets CPSC 16CFR 1201-CAT II impact safety rating.


References:

(click links above to download)
Doors: Need Fire-Rated Doors? Click Here
Product Type 60 min Window / Wall 60 min Window / Wall 60 min Butt-Joined Wall
Designation AW64W60 AW64W60 AW64WB60
Install in interior / exterior wall Interior Exterior Interior
Sightline 2-1/2 in 2-1/2 in 2-1/2 in
System Depth 6-7/8 in 7-1/2 in 7-1/4 in
Max. exposed glass area (per lite) 4,996 in2 4,996 in2 7,574 in2
Max. exposed glass width (per lite) 94-1/2 in 94-1/2 in 94-1/2 in
Max. exposed glass width (per lite) 94-1/2 in 94-1/2 in 138-1/2 in
Glazing Contraflam 60 Contraflam 60 IGU Contraflam Structure 60
Glass Marking W-60 W-60 W-60
Butt Joint Glazing Option - -
Glass Thickness 1 in 1-9/16 in 1-1/4 in
Glass Weight 10.3 lbs/ft2 14.9 lbs/ft2 14 lbs/ft2
